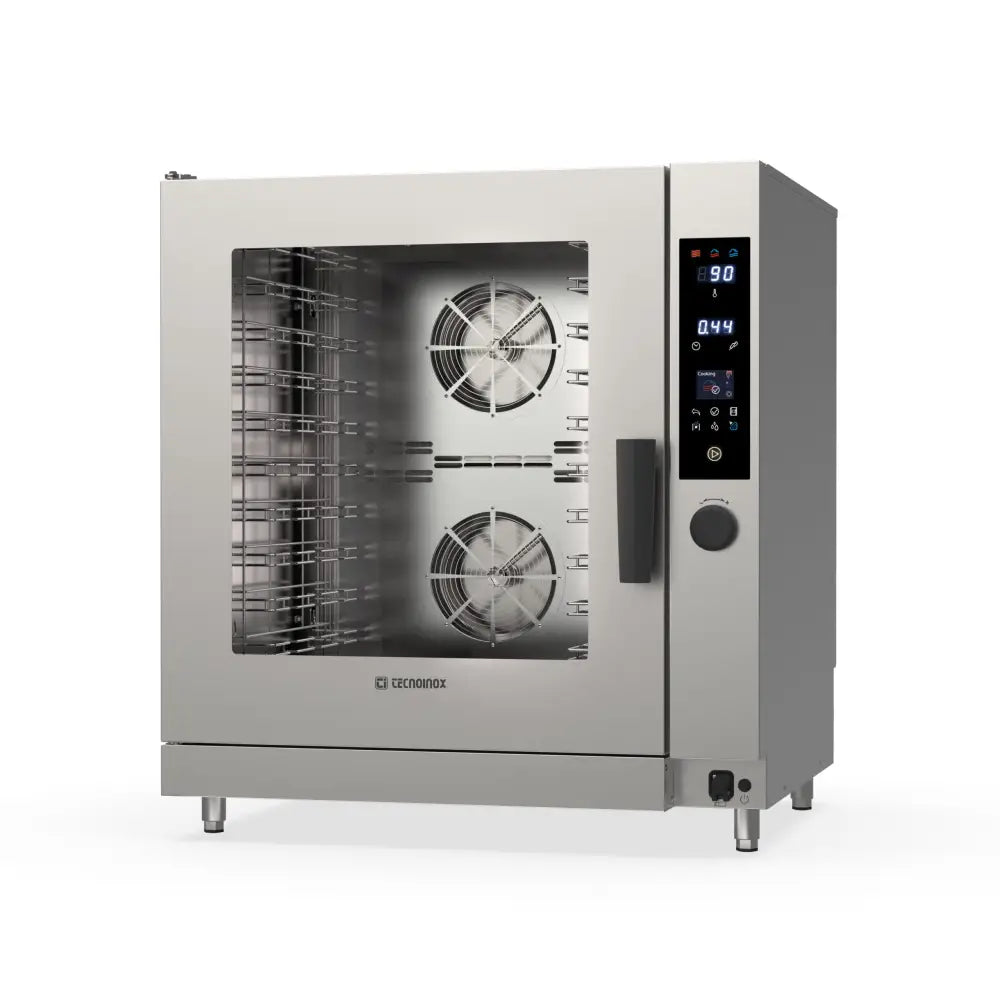

ELECTRIC OVEN 10TG DUAL PROG. C/SC-LAV MY24 - 964657 - TECNOINOX

- Total power [kW]: 16.5- Frequency [Hz]: 50/60- Voltage [V]: 380-415 3N~- Electric power [kW]: 16.5- Oven type: Digital - GN1/1 or 400 x 600 mm tray- Tray spacing [cm]: 6.5- Guides [n°]: 10- Cooking chamber dimensions [cm]: 68x45x73- Power supply height EL from Floor/Position: 4cm- Water connection diameter: 3/4"- Water connection position: 4cm- Drain diameter: 1.9685"- Water drain position: 4cm- Width [cm]: 95- Depth [cm]: 80- Height [cm]: 102- Width of packaging [cm]: 101- Depth of packaging [cm]: 93- Height of packaging [cm]: 129- Net weight [kg]: 130- Gross weight [kg]: 145- Volume [m³]: 1.17- Combined Nomenclature: 84198180- Stackable weight of packaging (kg): 500- Package Rotation Index: Horizontal- Minute minder [min]: 0-540- Tray capacity [n°]: 10xGN1/1o10x(600x400- Temperature in the steam cycle [°C]: 50÷120- Thickness of the thermal insulation [mm]: 35- Electric power of the fan motor [kW]: 0.5- Power of the convection unit [kW]: 16- Fan speed: 4- Temperature in the mixed cycle [°C]: 50÷250- Temperature in the convection cycle [°C]: 50÷265- Minimum power cable section (n° - mm²): 5 x 2.5- Cable type: H07 RN-F- Testing: 40029- Dashboard type Ref. diagram: EFM_DS- Electrical connection dimension (H) [mm]: 35- Electrical connection dimension (X) [mm]: 770- Electrical connection dimension (Y) [mm]: 0- Cold water connection height (H) [mm]: 55- Cold water connection height (X) [mm]: 813- Cold water connection height (Y) [mm]: 0- Softened water connection height (H) [mm]: 55- Softened water connection height (X) [mm]: 873- Softened water connection height (Y) [mm]: 0- Drain connection height (H) [mm]: 31- Drain connection height (X) [mm]: 735- Drain connection height (Y) [mm]: 70- Foot height [mm]: 65- Foot adjustment [mm]: 65/75- IPX rating: 3- Model: EOB10DSL
