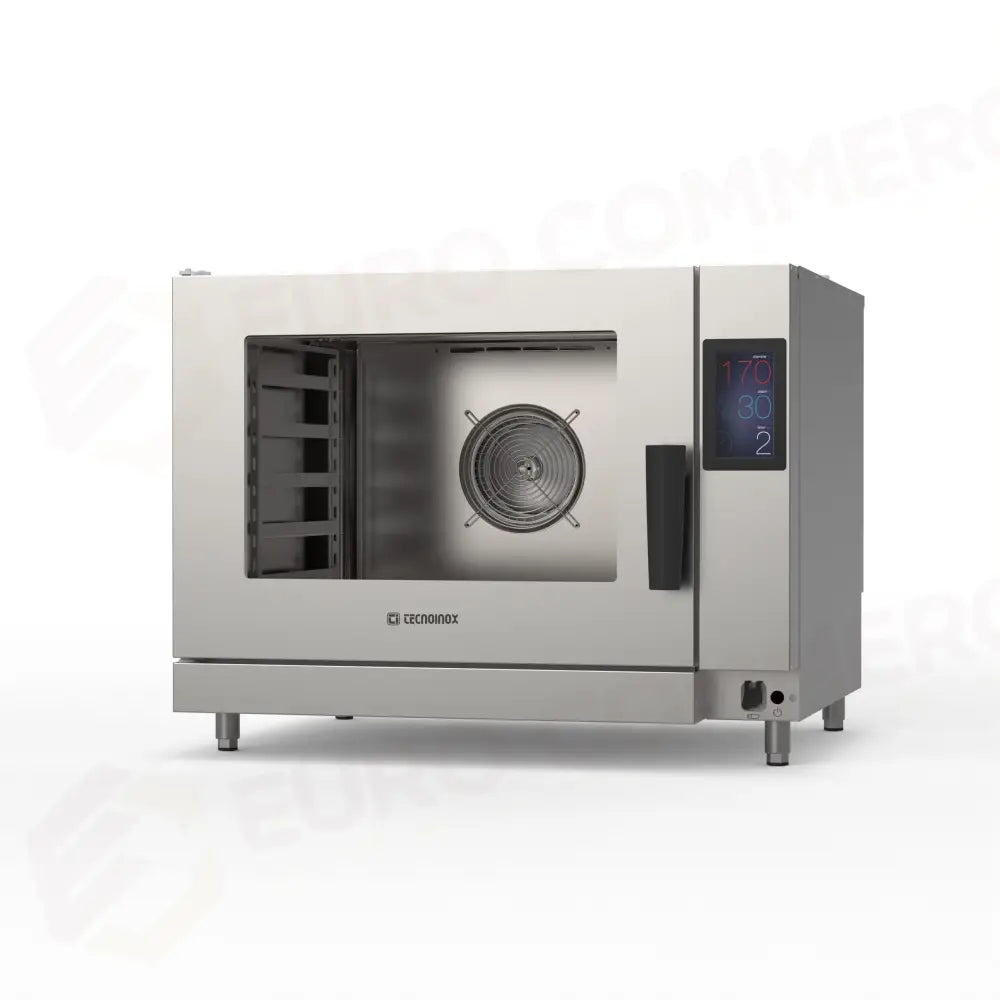

ELECTRIC OVEN 5TG PAST NEXT W/SC-LAV MY24 - 964650 - TECNOINOX

- Total power [kW]: 8.25- Frequency [Hz]: 50/60- Voltage [V]: 380-415 3N~- Electric power [kW]: 8.25- Oven type: Digital - 400 x 600 mm tray- Tray spacing [cm]: 8- Guides [n°]: 5- Cooking chamber dimensions [cm]: 68x45x45- Power supply height EL from Floor/Position: 4cm- Water connection diameter: 1.9685"- Water connection position: 4cm- Drain diameter: 1.9685"- Drain position: 4cm- Width [cm]: 95- Depth [cm]: 80- Height [cm]: 74- Width of packaging [cm]: 103- Depth of packaging [cm]: 101- Height of packaging [cm]: 101- Net weight [kg]: 114- Gross weight [kg]: 127.5- Volume [m³]: 1.05- Combined Nomenclature: 84198180- Stackable weight of packaging (kg): 500- Package Rotation Index: Horizontal- Minute minder [min]: 0-540- Tray capacity [n°]: 5x(600x400)- Temperature in the steam cycle [°C]: 50÷120- Thickness of the thermal insulation [mm]: 35- Electric power of the fan motor [kW]: 0.25- Power of the convection unit [kW]: 8- Fan speed: 4- Temperature in the mixed cycle [°C]: 50÷250- Temperature in the convection cycle [°C]: 50÷265- Minimum power cable section (n° - mm²): 5 x 1.5- Cable type: H07 RN-F- Testing: 40036- Dashboard type Ref. diagram: EFP_DS- Electrical connection height (H) [mm]: 35- Electrical connection height (X) [mm]: 770- Electrical connection height (Y) [mm]: 0- Water connection height cold (H) [mm]: 55- Cold water connection height (X) [mm]: 813- Cold water connection height (Y) [mm]: 0- Softened water connection height (H) [mm]: 55- Softened water connection height (X) [mm]: 873- Softened water connection height (Y) [mm]: 0- Drain connection height (H) [mm]: 31- Drain connection height (X) [mm]: 735- Drain connection height (Y) [mm]: 70- Foot height [mm]: 65- Foot adjustment [mm]: 65/75- IPX grade: 4- Model: EOP05TSL
