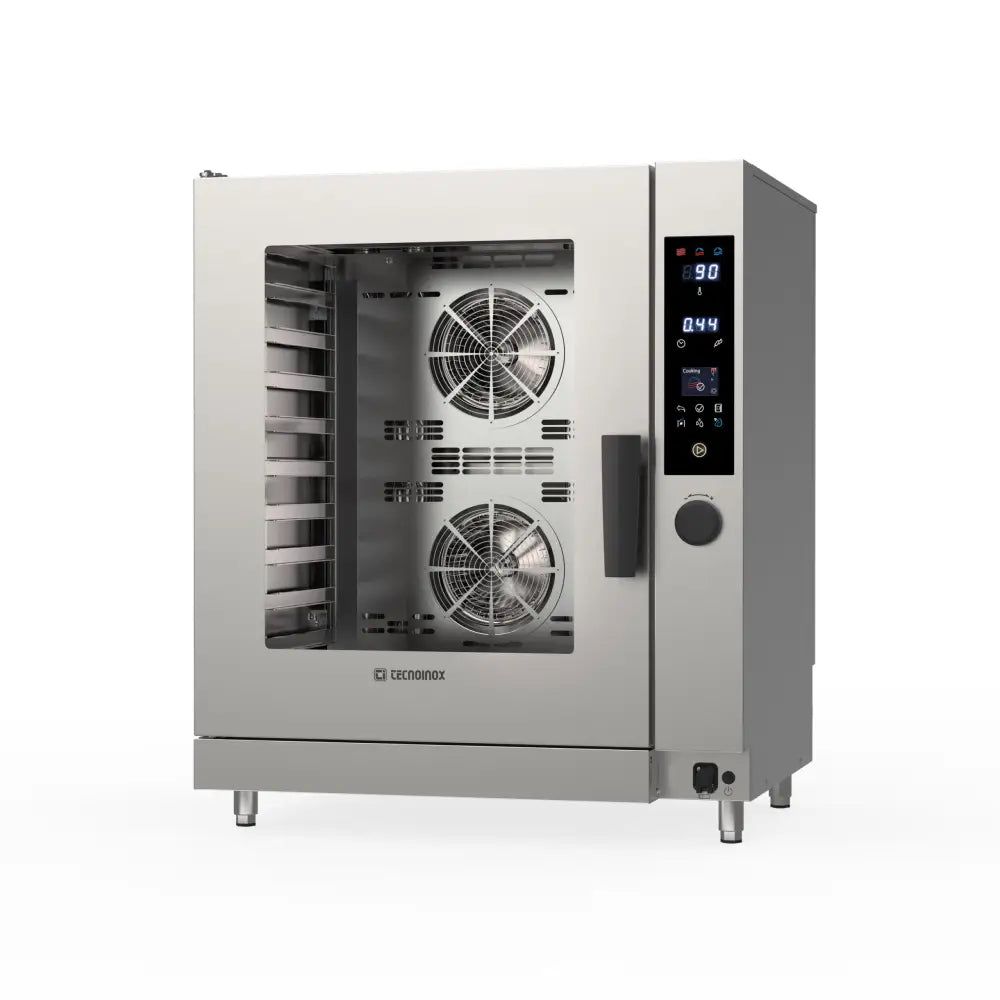

ELECTRIC COMBINED OVEN 10 GN1/1 MY24 - 952653 - TECNOINOX

- Total power [kW]: 16.5- Frequency [Hz]: 50/60- Voltage [V]: 380-415 3N~- Electric power [kW]: 16.5- Natural gas consumption [m³/h]: 2.01- Oven type: Digital - GN1/1 tray- Tray spacing [cm]: 6.5- Guides [n°]: 10- Cooking chamber dimensions [cm]: 59x38x73- Power supply height EL from Floor/Position: 4cm- Diameter of water connection: 3/4"- Position of water connection: 4cm- Diameter of drain: 1.9685"- Position of water drain: 4cm- Width [cm]: 86- Depth [cm]: 72- Height [cm]: 102- Width of packaging [cm]: 95- Depth of packaging [cm]: 94- Height of packaging [cm]: 130- Net weight [kg]: 112- Gross weight [kg]: 137.2- Volume [m³]: 1.16- Combined Nomenclature: 84198180- Stackable weight of packaging (kg): 500- Package Rotation Index: Horizontal- Minute minder [min]: 0-540- Tray capacity [n°]: 10xGN1/1- Temperature in the steam cycle [°C]: 50÷120- Thickness of the thermal insulation [mm]: 35- Electric power of the fan motor [kW]: 0.5- Maximum food load [Kg]: 50- Nominal thermal power [kW]: 19- Fan speed: 4- Temperature in the mixed cycle [°C]: 50÷250- Temperature in the convection cycle [°C]: 50÷265- Minimum power cable section (n° - mm²): 3 x 1.5- Cable type: H07 RN-F- Testing: 40029- Dashboard type Ref. diagram: EFM_D- Electrical connection dimension (H) [mm]: 35- Electrical connection dimension (X) [mm]: 702- Electrical connection dimension (Y) [mm]: 0- of the cold water connection (H) [mm]: 55- Height of the cold water connection (X) [mm]: 745- Height of the cold water connection (Y) [mm]: 0- Height of the softened water connection (H) [mm]: 55- Height of the softened water connection (X) [mm]: 805- Height of the softened water connection (Y) [mm]: 0- Height of the drain connection (H) [mm]: 31- Height of the drain connection (X) [mm]: 667- Height of the drain connection (Y) [mm]: 70- Height of the foot [mm]: 65- Height of the foot [mm]: 65/75- IPX degree: 3- Model: EOM10D
