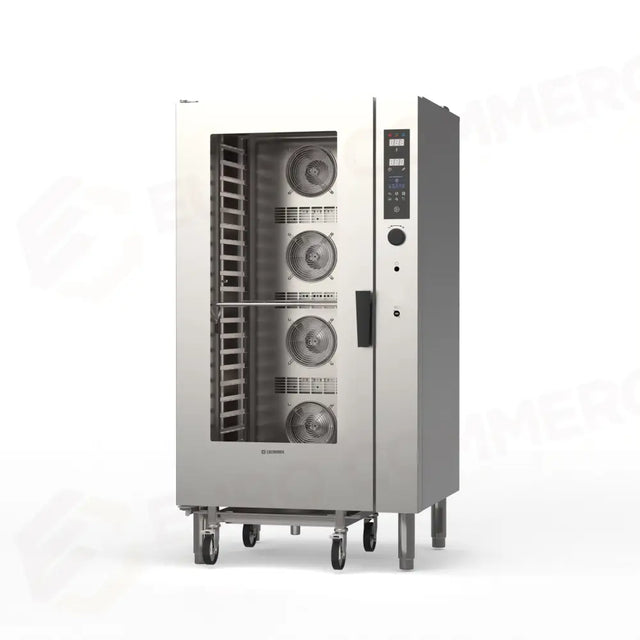

ELECTRIC OVEN 20TG GN1/1 PR.C/SC-L. C/B MY23 - 954659 - TECNOINOX

- Total power [kW]: 41- Frequency [Hz]: 50/60- Voltage [V]: 380-415 3N~- Electric power [kW]: 41- Oven type: Digital - GN1/1 tray- Tray spacing [cm]: 6.5- Guides [n°]: 20- Cooking chamber dimensions [cm]: 68x45x148- Power supply height EL from Floor/Position: 22cm- Diameter of water connection: 3/4"- Position of water connection: 22cm- Diameter of drain: 1.9685"- Position of water drain: 18cm- Width [cm]: 100- Depth [cm]: 94- Height [cm]: 188- Width of packaging [cm]: 108- Depth of packaging [cm]: 110- Height of packaging [cm]: 208- Net weight [kg]: 280- Gross weight [kg]: 324- Volume [m³]: 2.47- Combined Nomenclature: 84198180- Neck Rotation Index: Horizontal- Minute minder [min]: 0-540- Tray capacity [n°]: 20xGN1/1- Temperature in steam cycle [°C]: 50÷120- Thickness of thermal insulation [mm]: 35- Electric power of the fan motor [kW]: 0.25- Power of the convection unit [kW]: 40- Maximum food load [Kg]: 80- Fan speed: 4- Temperature in the mixed cycle [°C]: 50÷250- Temperature in the convection cycle [°C]: 50÷265- Minimum power cable section (n° - mm²): 5 x 10- Cable type: H07 RN-F- Dashboard type Ref. diagram: EFM_D- Electrical connection height (H) [mm]: 220- Electrical connection height (X) [mm]: 840- Electrical connection height (Y) [mm]: 225- Cold water connection height (H) [mm]: 220- Cold water connection height (X) [mm]: 880- Cold water connection height (Y) [mm]: 590- Softened water connection height (H) [mm]: 220- Softened water connection height (X) [mm]: 880- Softened water connection height (Y) [mm]: 480- Drain connection height (H) [mm]: 180- Drain connection height (X) [mm]: 750- Drain connection height (Y) [mm]: 360- Foot height [mm]: 220- Foot adjustment [mm]: 220/246- IPX rating: 4- Model: EOM20DSLB
