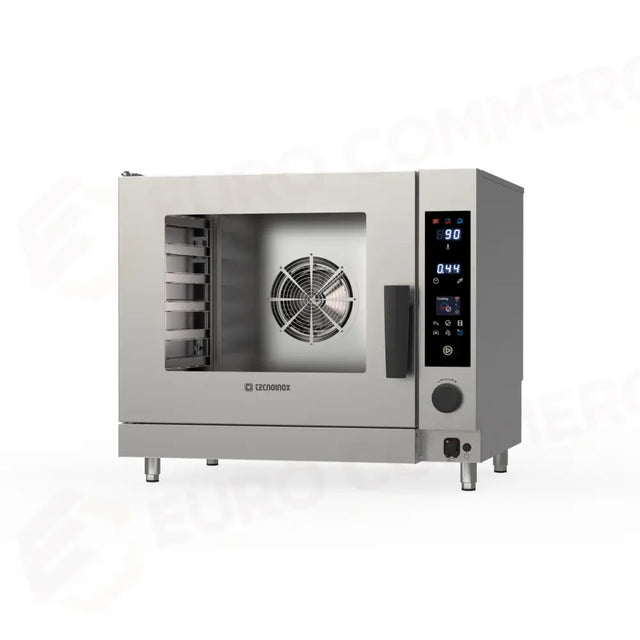

ELECTRIC OVEN 6TG GN1/1 PROG.C/SC-LAV MY24 - 954651 - TECNOINOX

- Total power [kW]: 8.25- Frequency [Hz]: 50/60- Voltage [V]: 380-415 3N~- Electric power [kW]: 8.25- Oven type: Digital - GN1/1 tray- Tray spacing [cm]: 6.5- Guides [n°]: 6- Cooking chamber dimensions [cm]: 59x38x45- Power supply height EL from Floor/Position: 4cm- Diameter of water connection: 3/4"- Position of water connection: 4cm- Diameter of drain: 1.9685"- Position of water drain: 4cm- Width [cm]: 86- Depth [cm]: 72- Height [cm]: 74- Width of packaging [cm]: 93- Depth of packaging [cm]: 87- Height of packaging [cm]: 100- Net weight [kg]: 90- Gross weight [kg]: 104- Volume [m³]: 0.80- Combined Nomenclature: 84198180- Stackable weight of packaging (kg): 500- Package Rotation Index: Horizontal- Minute minder [min]: 0-540- Tray capacity [n°]: 6xGN1/1- Temperature in the steam cycle [°C]: 50÷120- Thickness of the thermal insulation [mm]: 35- Electric power of the fan motor [kW]: 0.25- Power of the convection unit [kW]: 8- Maximum food load [Kg]: 30- Fan speed: 4- Temperature in the mixed cycle [°C]: 50÷250- Temperature in the convection cycle [°C]: 50÷265- Minimum power cable section (n° - mm²): 5 x 1.5- Cable type: H07 RN-F- Test: 40036- Dashboard type Ref. diagram: EFM_DS- Electrical connection height (H) [mm]: 35- Electrical connection height (X) [mm]: 702- Electrical connection height (Y) [mm]: 0- Water connection height cold (H) [mm]: 55- Cold water connection height (X) [mm]: 745- Cold water connection height (Y) [mm]: 0- Softened water connection height (H) [mm]: 55- Softened water connection height (X) [mm]: 805- Softened water connection height (Y) [mm]: 0- Drain connection height (H) [mm]: 31- Drain connection height (X) [mm]: 667- Drain connection height (Y) [mm]: 70- Foot height [mm]: 65- Foot adjustment [mm]: 65/75- IPX rating: 4- Model: EOM06DSL
