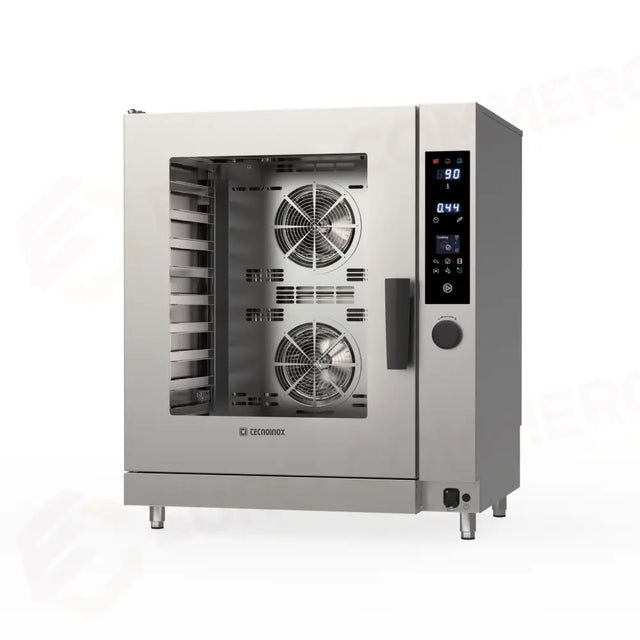

GAS OVEN 10TG GN1/1 PROG. C/SC-LAV MY24 - 954353 - TECNOINOX

- Total power [kW]: 19 + 0.5- Frequency [Hz]: 50/60- Voltage [V]: 220-240 ~- Electric power [kW]: 0.5- Gas power [kW]: 19- Natural gas consumption [m³/h]: 2.01- Oven type: Digital - GN1/1 tray- Tray spacing [cm]: 6.5- Guides [n°]: 10- Cooking chamber dimensions [cm]: 59x38x73- Power supply height EL from the ground/Position: 4cm- Diameter of the gas connection: 1/2"G EN10226-1- Diameter of the water connection: 3/4"- Position of the water connection: 4cm- Diameter of the drain: 1.9685"- Position of the water drain: 4cm- Width [cm]: 86- Depth [cm]: 72- Height [cm]: 102- Width of the packaging [cm]: 95- Depth of the packaging [cm]: 94- Height of the packaging [cm]: 130- Net weight [kg]: 140.3- Gross weight [kg]: 154.5- Volume [m³]: 1.16- Combined Nomenclature: 84198180- Stackable weight of the packaging (kg): 500- Package Rotation Index: Horizontal- CE gas certificate number: CE-0085CP0593- Minute minder timer [min]: 0-540- Tray capacity [n°]: 10xGN1/1- Temperature in the steam cycle [°C]: 50÷120- Thickness of the thermal insulation [mm]: 35- Electric power of the fan motor [kW]: 0.5- Maximum food load [Kg]: 50- Nominal thermal power [kW]: 19- Fan speed: 4- Temperature in the mixed cycle [°C]: 50÷250- Temperature in the convection cycle [°C]: 50÷265- Minimum power cable section (n° - mm²): 3 x 1.5- Cable type: H07 RN-F- Testing: 10021- Dashboard type Ref. diagram: GFM_DS- Electrical connection height (H) [mm]: 41- Height of the Electrical connection (X) [mm]: 155- Electrical connection height (Y) [mm]: 0- Gas connection height (H) [mm]: 126- Gas connection height (X) [mm]: 27- Gas connection height (Y) [mm]: 0- Cold water connection height (H) [mm]: 126- Cold water connection height (X) [mm]: 185- Cold water connection height (Y) [mm]: 0- Softened water connection height (H) [mm]: 126- Softened water connection height (X) [mm]: 125- Softened water connection height (Y) [mm]: 0- Drain connection height (H) [mm]: 38- Drain connection height (X) [mm]: 65- Drain connection height (Y) [mm]: 67- Foot height [mm]: 65- Foot adjustment [mm]: 65/75- IPX rating: 4- Model: GOM10DSL
