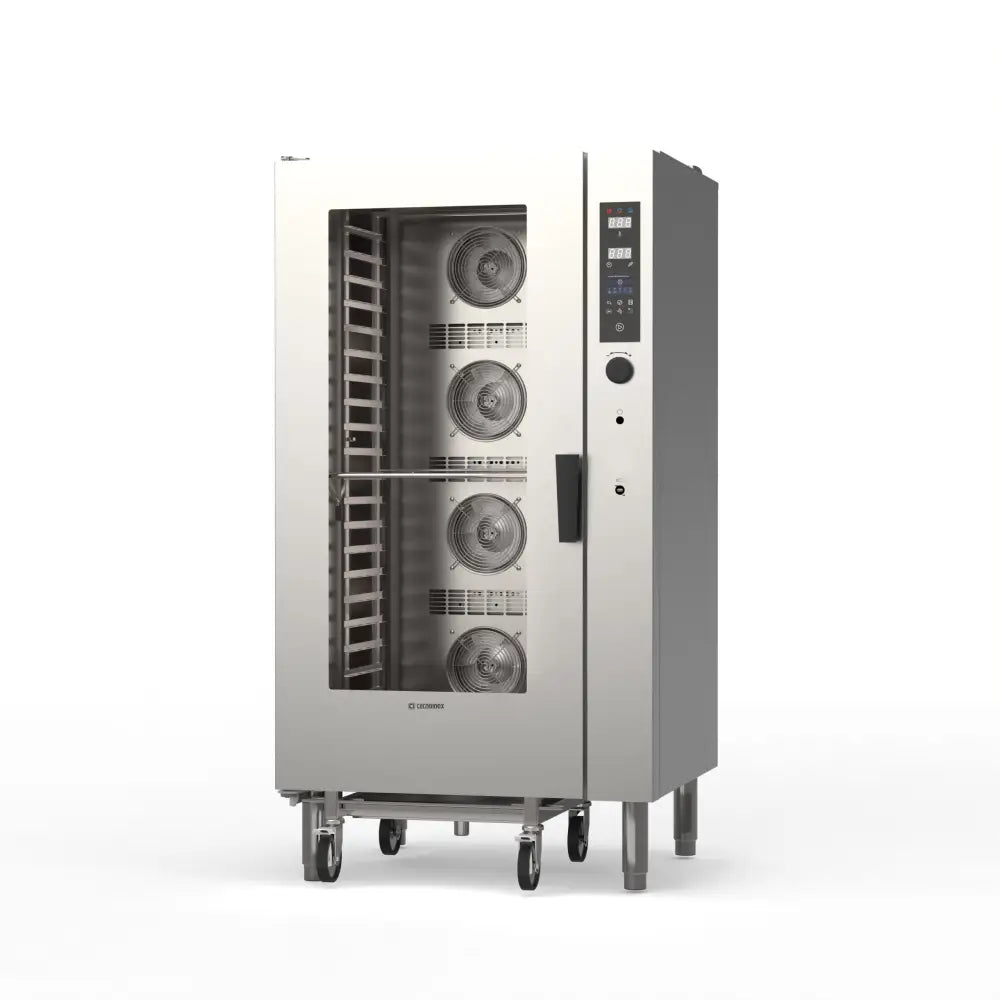

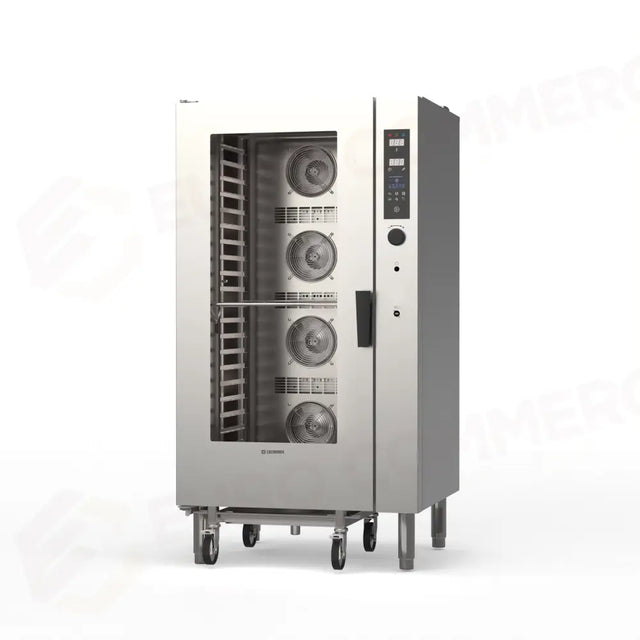

GAS OVEN 20TG GN1/1 DIG. BOILER MY24 - 954344 - TECNOINOX

- Total power [kW]: 47- Frequency [Hz]: 50/60- Voltage [V]: 220-240 ~- Electric power [kW]: 1- Gas power [kW]: 46- Oven type: Digital - GN1/1 tray- Tray spacing [cm]: 6.5- Guides [n°]: 20- Cooking chamber dimensions [cm]: 68x45x148- Water connection diameter: 3/4"- Water connection position: 18cm- Drain diameter: 1.9685"- Water drain position: 18cm- Width [cm]: 100- Depth [cm]: 94- Height [cm]: 186- Packaging width [cm]: 108- Packaging depth [cm]: 110- Packaging height [cm]: 208- Net weight [kg]: 349- Gross weight [kg]: 374- Volume [m³]: 2.47- Combined Nomenclature: 84198180- Stackable Packaging Weight (kg): 500- Package Rotation Index: Horizontal- Minute minder [min]: 0-540- Tray capacity [n°]: 20xGN1/1- Temperature in the steam cycle [°C]: 50÷120- Thickness of the thermal insulation [mm]: 35- Electric power of the fan motor [kW]: 1- Maximum food load [Kg]: 80- Fan speed: 4- Temperature in the mixed cycle [°C]: 50÷250- Temperature in the convection cycle [°C]: 50÷265- Minimum Power Cable Section (n° - mm²): 3 x 1.5- Cable Type: H07 RN-F- Testing: 90001- Dashboard type Diagram ref.: GFM_D- Electrical connection height (H) [mm]: 176.8- Electrical connection height (X) [mm]: 913.2- Electrical connection height (Y) [mm]: 0- Cold water connection height (H) [mm]: 231.8- Cold water connection height (X) [mm]: 913.2- Cold water connection height (Y) [mm]: 0- Softened water connection height (H) [mm]: 291.8- Softened water connection height (X) [mm]: 913.2- Softened water connection height (Y) [mm]: 0- Drain connection height (H) [mm]: 76.8- Drain connection height (X) [mm]: 743.2- Drain connection height (Y) [mm]: 0- Foot height [mm]: 215- Foot adjustment [mm]: 215/250- IPX rating: 3- Model: GOM20DSLB
